NaturaSpec Plus
Spectral Evolution – NIR
Identify minerals in the field
The NaturaSpec™ Plus is built for remote-sensing professionals who need complete confidence in their measurements. It removes the guesswork typically involved in determining field of view and aligning targets.
Along with spectral data, the instrument streams live video of what the fiber optic or lens attachment actually sees. Each measurement captures an image of the viewing area, plus angle, distance to the target, and GPS location.
The NaturaSpec™ Plus is the ultimate instrument to build high-resolution libraries and to push the limits of spectral analysis for remote sensing applications.
Available Accessory:
Specifications
Spectral Range | 350-2500nm |
Spectral Resolution | 2.7nm@700nm 5.5nm@1500nm 5.8nm@2100nm |
Spectral Sampling Bandwidth (nm) | Data output in 1nm increments; 2151 channels reported |
Detector(s) | 1024-element UV-enhanced Si Array 512-element TE-cooled InGaAs Array 512-element extended TE-cooled InGaAs Array |
Calibration | Spectral and radiometric calibration for radiance/irradiance measurements using NIST traceable sources. |
Noise Equivalence Radiance W/cm2/nm/sr | 0.3×10-9 @ 400nm 0.1×10-9 @ 1500nm 2.5×10-9 @ 2100nm |
Software Included | DARWin Data Acquisition |
Power (volts | watts) | 14.4v | 28w |
Dimensions (in | mm) | 317.5 x 226.1 x 86.4 (mm) 12.5 x 8.9 x 3.4 (in) |
Weight (lbs | kg) | 4.5kg | 9.9lbs (without internal battery) 5kg | 11lbs (with internal battery) |
Interface | USB, Wireless Connection |
Minimum Scan Speed | 100ms |
Wavelength Reproducibility (nm) | 0.1nm |
Wavelength Accuracy (nm) | ±0.5nm bandwidth |
Automatic Data | Data Optimization | One Touch Operation | Automatic Exposure | Detector Integration | Dark Current Correction |
Input | 1.5m fiber optic (25° field of view); optional fore optics |
Operational temperature range (°C) | 0 to 40 degrees |
Maximum Radiance | VNIR 2x Solar | SWIR 10x Solar |
Key Applications for NaturaSpec Plus
- Vegetation studies
- Environmental research
- Soil analysis, mapping, and profiling
- Ground truthing
- Geological remote sensing
- Solar radiance and irradiance research
- Species identification
Speak to PAS for expert guidance about the Spectral Evolution NaturaSpec Plus.
NaturaSpec Plus Features:
- Field Swappable Internal Battery
- Smart Power Switch
- Quick release fiber optic mount.
- Ergonomic grip for comfort and control by increasing support at the palm.
- A built-in inclinometer that allows the user to monitor scan angles and notifies the user when they are at nadir, so they know it’s ok to scan.

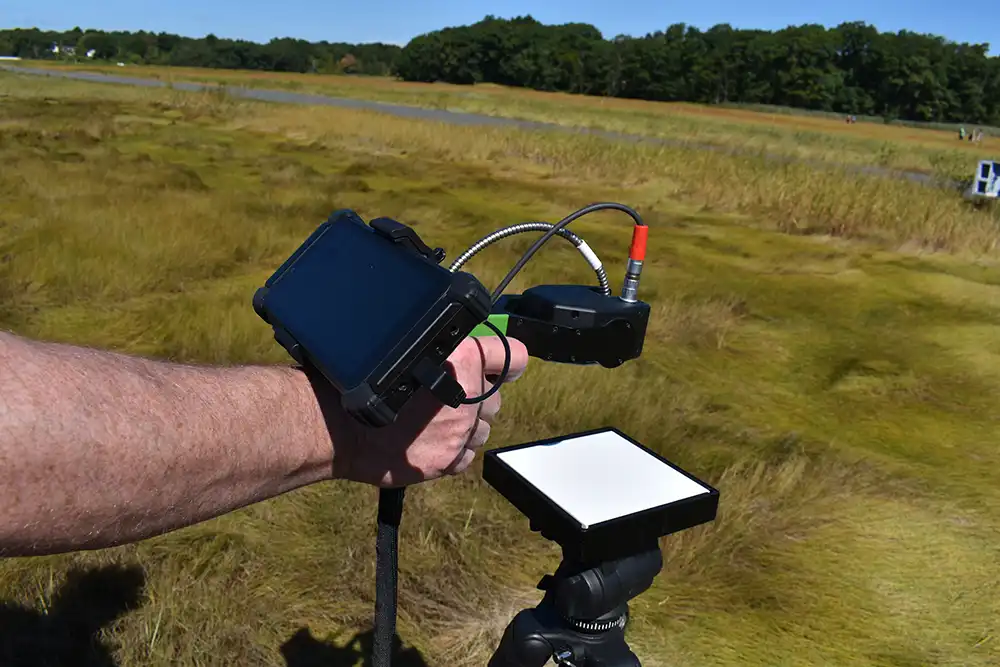

- A built-in camera for real-time targeting and capturing what is being scanned.
- Ultrasonic distance sensor measures the distance from the target and automatically shows the viewer the exact target area, accounting for field-of-view.
- Trigger activation to start a scan.
