Co-Aligned HP™
Headwall Photonics – Spectral Imaging
Compact VNIR-SWIR Hyperspectral Imaging System Tailored For Remote Sensing
Headwall’s first Hyperspec Co-Aligned VNIR-SWIR sensor quickly became the top-selling system in its category. The next-generation Co-Aligned HP™ VNIR-SWIR offers improved VNIR spatial resolution and more spectral bands, all in a small, lightweight, and power-efficient design.

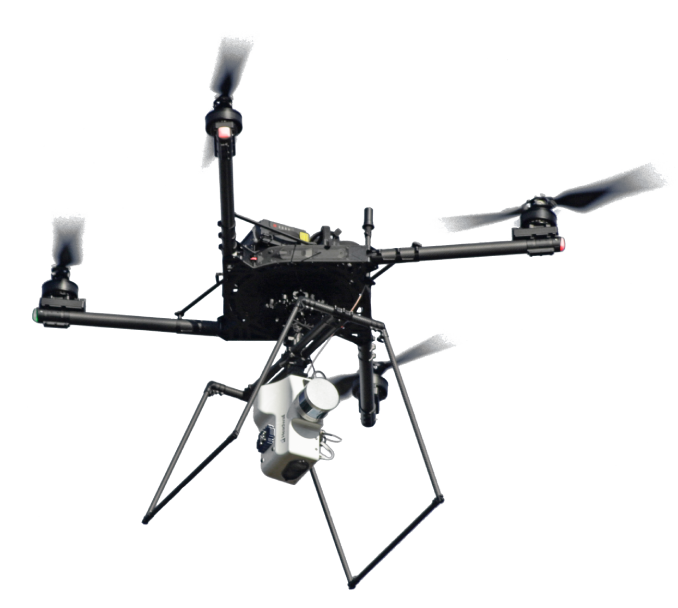

You can buy the Co-Aligned HP as a payload for compatible UAVs or as part of complete systems with the drone, like the DJI Matrice 600 Pro or the USA-made Freefly Alta X, which complies with NDAA regulations.
Key Features Of Headwall Co-Aligned
- Optimal SWaP (Size, Weight, and Power) performance
- Ideal for applications in mining, infrastructure, and environmental monitoring
- Factory-integrated and flight-proven
- Covers VNIR (400 to 1,000 nm) and SWIR (900 to 2,500 nm) wavelength ranges
- Equipped with built-in GPS-IMU and solid-state storage
- Option to include integrated LiDAR for generating high-resolution DEM (Digital Elevation Model) and 3D point clouds
![Headwall Photonics Co-Aligned 1 Headwall Photonics Co-Aligned 1](https://www.portableas.com/wp-content/uploads/./headwall-photonics-co-aligned-hp.png)
![Headwall Photonics Co-Aligned 2 Headwall Photonics Co-Aligned 2](https://www.portableas.com/wp-content/uploads/./headwall-photonics-co-aligned-hp-flight.png)
![Headwall Photonics Co-Aligned 3 Headwall Photonics Co-Aligned 3](https://www.portableas.com/wp-content/uploads/./Screen-Shot-2019-04-04-at-11.58.41-am-e1584572120199.png)
The Headwall Co-Aligned has no Competitors When It Comes To These Features:
FEATURES | HEADWALL | COMPETITION |
---|---|---|
Turnkey Systems, Everything You Need | ✔️ | ❌ |
Industry-Leading SWaP (Size, Weight, and Power) | ✔️ | ❌ |
Compact, Solid-State Hyperspectral Data-Acquisition | ✔️ | ❌ |
Available LiDAR and LiDAR-Hyperspectral Data-Fusion | ✔️ | ❌ |
All-Reflective, Aberration-Corrected Optical Spectrometer Design | ✔️ | ❌ |
Factory-Made Holographic Gratings | ✔️ | ❌ |
Applications for the Headwall Co-Aligned
Airborne Remote Sensing / Mine Mapping / Precision Agriculture / Mining and Exploration / Environmental Monitoring / Petroleum & Pipeline Monitoring
Speak to PAS for expert guidance on hyperspectral imaging options from Headwall Photonics.
Technical Specifications
SPECTRAL RANGE | VNIR, 400-1000nm | SWIR, 900-2500nm |
---|---|---|
MODEL | CO-ALIGNED HP™ | |
Spectral Bands | 340 | 267 |
Spatial Pixels | 1020 | 640 |
Camera Technology | CMOS | MCT |
Pixel Pitch | 5.86 μm | 15 μm |
Aperture | f/2.5 | |
Slit Length | 6 mm | 10.4 mm |
Dispersion/Pixel | 1.76 nm | 6 nm |
Entrance Slit Width | 20 μm | 15 μm |
Spectral FWHM | 8 nm | 8 nm |
Frame Rate (Sustained) | 250 Hz | 200 Hz |
ADC Bit Depth | 12-bits | 16-bits |
Cooling | No | Stirling-Cooled |
Spectrograph Design | Co-Aligned & Aberration-Corrected | |
Digital Interface | GigE | GigE |
GPS/IMU | Applanix APX-15 | |
Data Storage on Payload | 480 GB Solid-State for Each Sensor | |
Weight (sensor only) | 4.0 kg / 8.8 lbs | |
Dimensions (sensor only) | 272 x 211 x 165 mm | |
Power req (typical / max) | 14.4 W / 36 W | 37 W / 40 W |
Operational Temp Range | 0 – 40 °C | |
Storage Temp Range | -20 – 60 °C | |
Compatible UAVs | DJI Matrice 600 Pro, Freefly Alta X |
